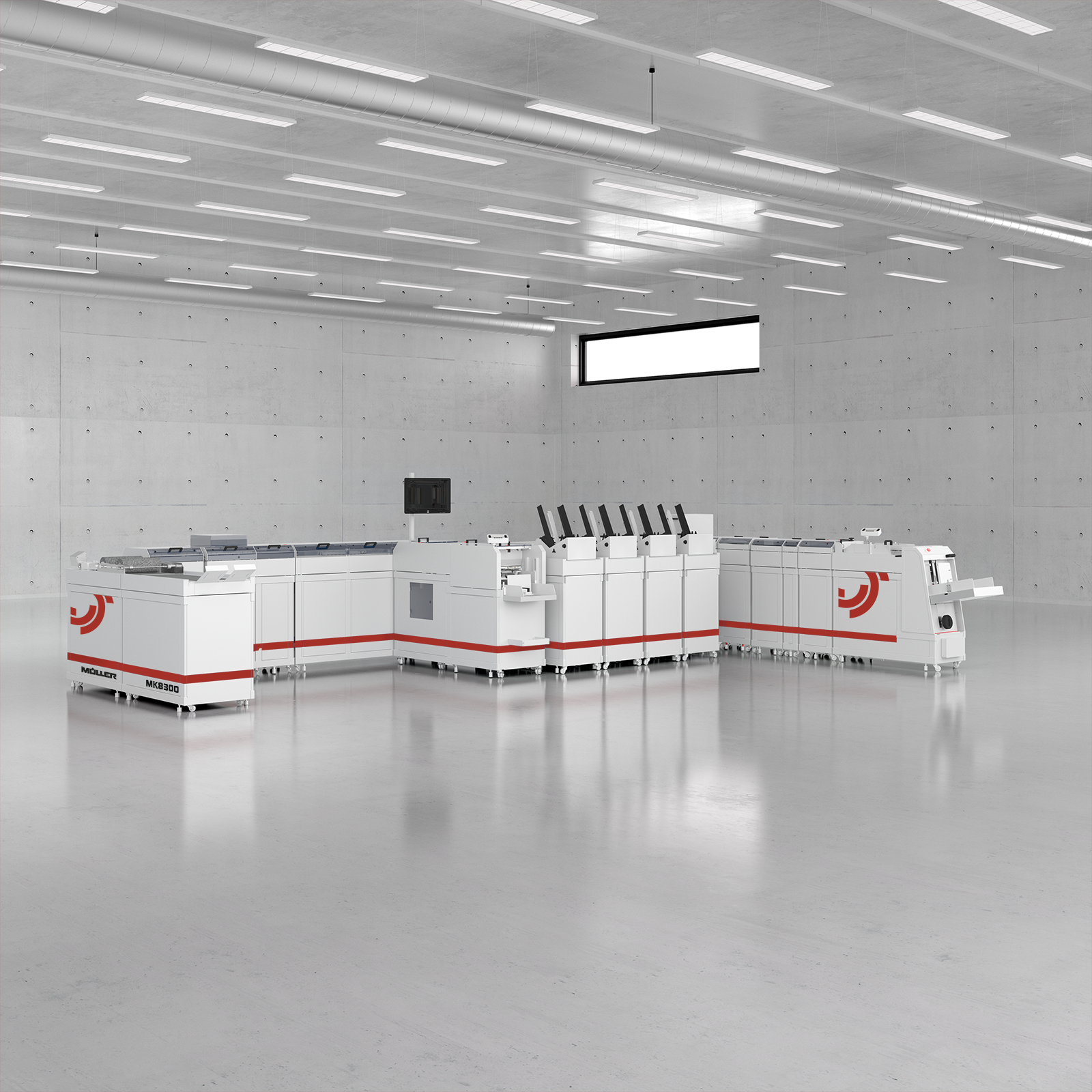

Müller MK8300. Flexible Multiformat Inserting System.
Thanks to simple and fast job set-up for format changes and ultimate flexibility due to the modular design, the Müller 8300 adapts perfectly to increasingly complex applications. In particular, the multi-channel system from Müller, which is freely configurable from 2 to 15 stations, enables this unique flexibility. This allows multi-channel applications with reading and enclosures to be produced in any order. Whether as a cut-sheet or from the web, with or without reading, un- or prefolded enclosures – almost anything is possible. Nearly all transaction applications from personalized large and small jobs to direct mail applications can be handled with the Müller 8300. The intuitive Müller software provides the necessary security and guarantees complete traceability throughout the entire production process.
Our Services
Reliable functionality and support after the purchase. Advice before the purchase, support and assistance after the purchase of a Kern system is the be-all and end-all. Efficient support is one of the most important components of the Kern Group. To ensure optimum system availability and productivity, the Kern Group offers a comprehensive and reliable service programme worldwide.
Performance | Müller 8308: 8.000 (DL - C4) Müller 8306: 6.000 (DL - C4) |
Document | Cut sheet or continuous (pinless and pinfeed) (60) 70 - 130 (170) g/m² 100 - 405 mm (4 - 16") paper length 15.000 - 40.000 documents/h |
Processing | 2-up continuous slalom and cut sheet White paper management Face down, foot first, A-Z (= standard) |
Cutter | Horizontal slit and gutter cut at full speed Vertical slit and gutter cut (left, right, within the document) |
Folder | All types of fold up to 9 sheets (half fold up to 16 sheets) |
Interface | Central screen & local displays Document monitoring Interface for productions management systems (PMS) |
Enclosures | DL: Min. 98 x 190 mm, Max. 115 x 227 mm C5: Min. 98 x 190 mm, Max. 155 x 227 mm C4: Min. 200 x 280 mm, Max. 220 x 307 mm (40) 60 - 200 (250) g/m² 1.500 sheets |
Envelopes | DL: Min. 105 x 200 mm, Max. 120 x 240 mm (h x w) C5: Min. 150 x 200 mm, Max. 162 x 240 mm (h x w) C4: Min. 218 x 300 mm, Max. 250 x 345 mm (h x w) 70 - 120 g/m² 1000 envelopes 12 mm filling capacity |
